BGS-F2305 1600KV 1800KV Durable Brushless Motor for Racing FPV Drone

Product Number:F2305

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

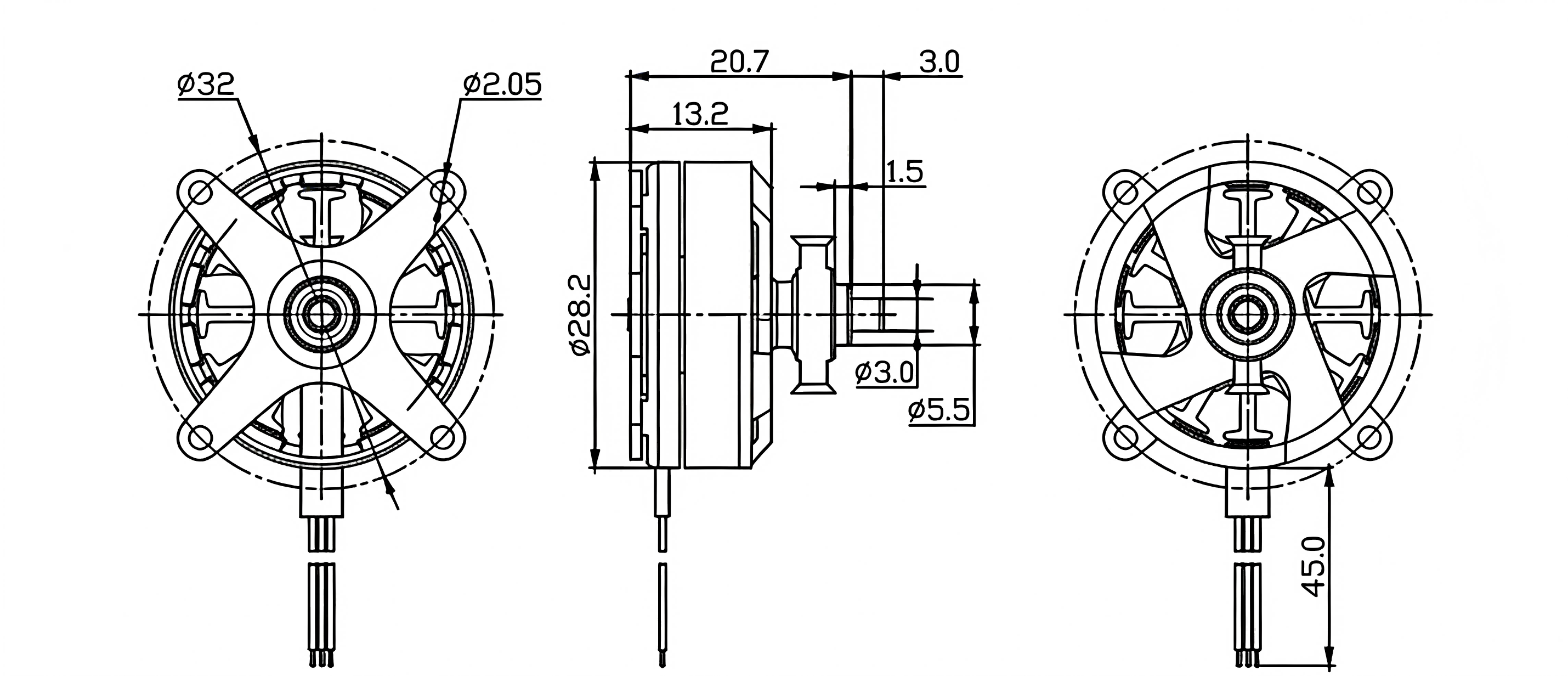

Motor dimensions
28.2*14.2mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
5.5mm
Motor weight
26g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F2305	KV	W	A	g	g/W	/	S	A
	1600	105	14.2	485	4.6	8060	2S	30
	1600	102	13.8	560	5.5	9050	2S	30
	1850	144	19.5	685	4.8	9050	2S	40
